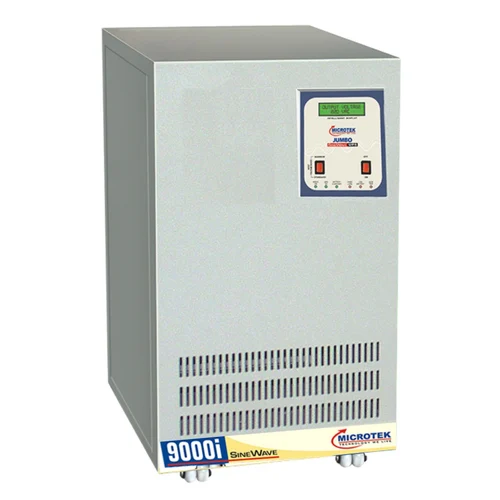

Microtek UPS JM SW 9000i is Hi-Grade IGBT Based Jumbo UPS Model with Intelli Pure Sinewave Technology which ensures Noiseless, Safe and Efficient Performance. It is Micro Processor based PWM technology using Hi-Grade IGBT’s with Peak Current Handling Capacity and LCD Display. It has In-built Time Delay Relay and Advanced Battery Management for Longer Battery Life and Quick Charging.
| Rated Capacity |
8 KVA / 120 V |
| Output Power |
6400 Watts |
| Battery |
10 Battery System (120 VDC) |
| Waveform |
Pure Sinewave |
| Warranty |
2 Years |
KEY FEATURE
- Advanced Battery Management (ABM) for Longer Battery Life and Quick Charging
- Micro Processor based PWM Technology using Hi-Grade IGBT’s
- LED & LCD Display Indications.
- Best Suited for most High Capacity Sophisticated Applications.
- Generator Compatible.
- In-built Time Delay Relay (TDR).
Display
- MAINS ON
- UPS ON
- BATTERY CHARGING
- OVERLOAD
- LOW BATTERY
- MCB TRIP
| INPUT |
| INPUT VOLTAGE (Standard range) |
100V ~ 280V |
| INPUT VOLTAGE (Narrow Range) |
180V ~ 265V |
| OUTPUT |
| OUTPUT VOLTAGE (Main Mode) |
Same as INPUT |
| OUTPUT VOLTAGE (UPS Mode) |
220V + 10% |
| OUTPUT WAVE FROM (Main Mode) |
Same as INPUT |
| OUTPUT WAVE FROM (UPS Mode) |
Pure Sinewave |
| CHANGE-OVER |
| SWITCHOVER (Mains>UPS / UPS>Mains) |
AUTOMATIC |
| UPS TRANSFER TIME |
<15 msec |
| TECHNOLOGY |
| UPS OVERLOAD / UPS SHORT CIRCUIT |
105%~125%(4 Times Auto Reset) / 300% |
| EFFICIENCY (BATTERY MODE) |
>80% |
| TOTAL HARMONIC DISTORTION (Resistive Load) |
Less than 3% |
| AUTO RESET FEATURE |
YES |
| INPUT DC RANGE |
105 ~ 142 V ± 1 Volt |
| MAXIMUM CHARGING CURRENT |
16 Amps(Settable ± 3 Amps) |
| SEPARATE OUTPUT WITH TDR |
1 minute TDR |
| OPERATING TEMPRATURE |
0 to 45 Degree Celsius |
